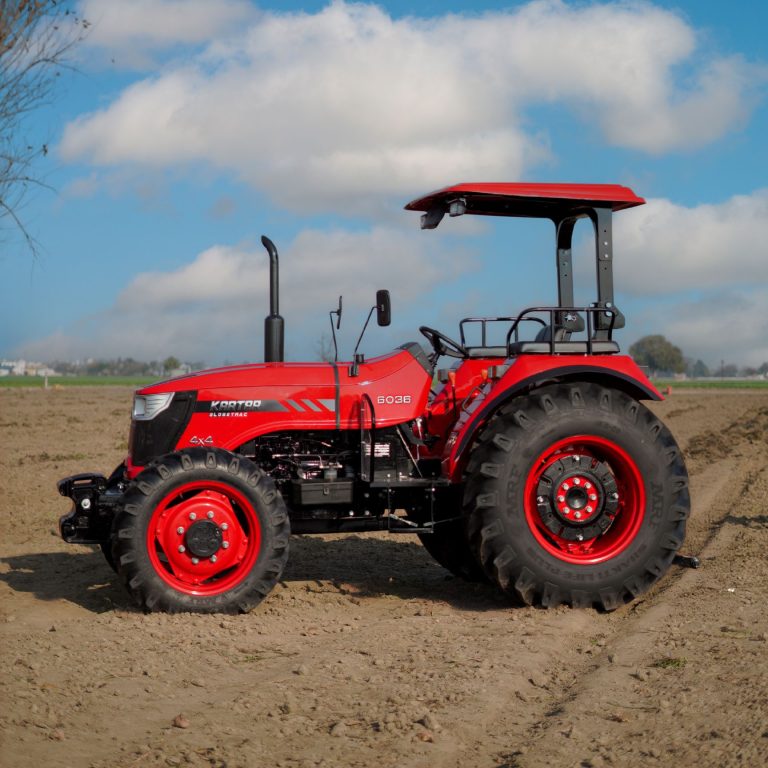

Tracteur KARTAR Globetrac 6036
Kartar Globetrac 6036
Kirloskar 4R 1040 (60 HP @ 2200 RPM), 4-cylinder naturally aspirated with dry type filter (clogging sensor) and copper radiator (coolant, overflow reservoir). Carraro Synchro Shuttle Synchromesh T-75 12F + 12R, Oil-Immersed Disc Brakes, and Cat-II ADDC with Lift-o-Matic. 2200 kgf lift capacity, 60 L fuel tank, hydrostatic balanced power steering, independent parking brake.
Technical Specifications
Specification : Globetrac 6036
Type : Kirloskar 4R 1040, 2200RPM; 4 Cylinder, Naturally Aspirated
Power (HP) : 60
Bore/Stroke : 105 × 120 mm
Cubic Centimeters (CC) : 4160
Air Cleaner : Dry Type Filter with Clogging Sensor
Cooling : Copper Radiator with Coolant – Cooled System & Overflow Reservoir
Clutch : Independent
Gear Type : Carraro Synchro Shuttle Synchromesh T-175
Gear Box : 12 Forward + 12 Reverse
Plate Size (mm) : ø310
Speeds (Forward) : 1.72 to 35.47 km/hr
Speeds (Reverse) : 1.46 to 30.15 km/hr
Lifting Capacity : 2200 Kg
3 Point Linkage : Category-II Automatic Depth & Draft Control (ADDC) with Lift-o-Matic Button
Tyres (2WD) : Front 7.5×16; Rear 16.9×28
Tyres (4WD) : Front 9.5×24; Rear 16.9×28
Fuel Tank Capacity : 60 L
Brake Type : Oil-Immersed Disc Brakes
Parking Brake : Independent
Battery : 100Ah, 12V
Alternator : 42Amp
Starter Motor : Gear type, 2.7 kW, 12V
Steering Type : Hydrostatic Balanced type Power steering
PTO (Power Take-Off) : 540@1938 RPM & 540E@1648 RPM, Ground PTO, 6 Splines
