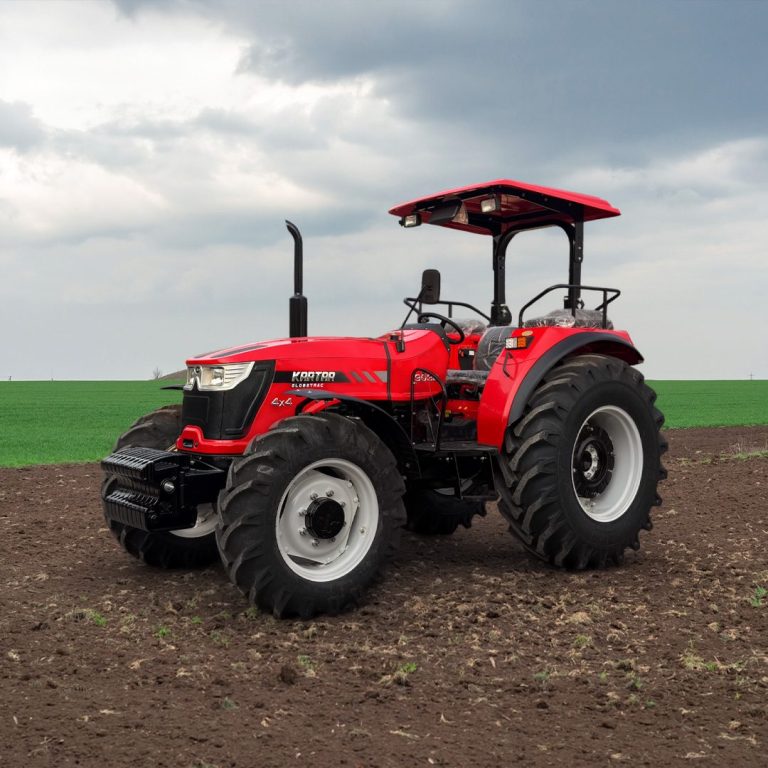

Tracteur KARTAR Globetrac 9036
Kartar Globetrac 9036
Kirloskar 4R 1040, 90 HP, 4-cylinder water-cooled turbocharged engine with dry air cleaner and copper radiator. Carraro Synchro Shuttle Synchromesh 12F + 12R transmission, MITA hydraulics with Cat-II ADDC & Lift-o-Matic, lifting capacity of 2500 kg.
Technical Specifications
Specification : Globetrac 9036
Type : Kirloskar 4R 1040, 2200 RPM; 4 Cylinder, Turbo Charged
Power (HP) : 90
Bore/Stroke : 105 × 120 mm
Cubic Centimeters (CC) : 4160
Air Cleaner : Dry Air Cleaner with Clogging Sensor
Cooling : Copper Radiator with Coolant – Cooled System & Overflow Reservoir
Clutch : Independent
Gear Type : Carraro Synchro Shuttle Synchromesh T-100
Gear Box : 12 Forward + 12 Reverse
Plate Size (mm) : ø310
Speeds (Normal – Standard) : Forward: 1.57 – 32.31 km/hr | Reverse: 1.33 – 27.46 km/hr
Speeds (Creeper – Optional) : Forward: 0.53 – 32.59 km/hr | Reverse: 0.45 – 27.70 km/hr
Tyres (4WD) : Front 12.4x24; Rear 18.4x30
Hydraulics Type : MITA Hydraulics with 4 Spool Valves
Lifting Capacity : 2500 Kg (without external cylinder) / 3200 Kg (with 2 external cylinders)
3 Point Linkage : Category-II Automatic Depth & Draft Control (ADDC) with Lift-o-Matic Button
Fuel Tank Capacity : 80 L
Brake Type : Oil-Immersed Disc Brakes
Parking Brake : Independent
Battery : 100Ah, 12V
Alternator : 42Amp
Starter Motor : Gear type, 2.7 kW, 12V
Steering Type : Hydrostatic Balanced type Power steering
PTO (Power Take-Off) : 540@1938 RPM & 540E@1648 RPM, Ground PTO, 6 Splines
